Advanced Image Rectangling with Reparameterized Transformers

In an article published in the journal Nature, researchers introduced a novel method for rectangling stitched images, addressing issues of irregular boundaries and content distortion. They utilized a reparameterized transformer structure and an assisted learning network to improve the rectangling process.

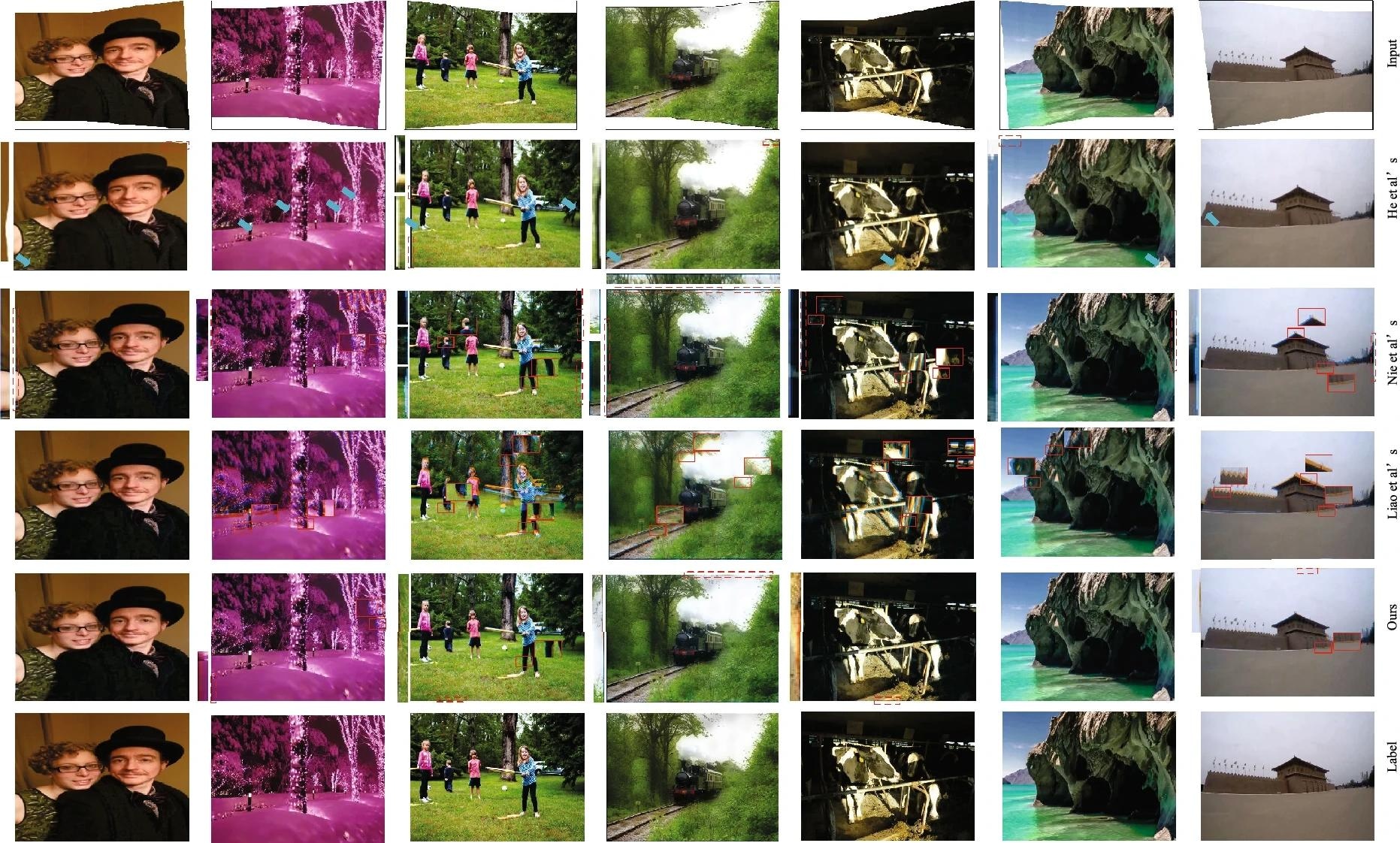

The images in figure are, from left to right, from datasets 00015, 00019, 00024, 00153, 00203, 00209, and 00215 in the DIR-D test dataset, respectively. Plot of the comparison results of the nonlinear scenes for each algorithm. Blue arrows represent distortion failure regions, red rectangular boxes represent twisted and distorted regions, and red dashed boxes represent boundary residual regions. https://www.nature.com/articles/s41598-024-56589-y
The images in figure are, from left to right, from datasets 00015, 00019, 00024, 00153, 00203, 00209, and 00215 in the DIR-D test dataset, respectively. Plot of the comparison results of the nonlinear scenes for each algorithm. Blue arrows represent distortion failure regions, red rectangular boxes represent twisted and distorted regions, and red dashed boxes represent boundary residual regions. https://www.nature.com/articles/s41598-024-56589-y

Additionally, a local thin-plate spline transform strategy enhanced parallel efficiency and preserved content fidelity. The proposed method achieved state-of-the-art performance with minimal parameters.

Background

Image stitching plays a crucial role in merging images from different viewpoints to create panoramic views, widely used in fields like medical imaging and virtual reality. However, traditional stitching methods often result in irregular boundaries, limiting their practical applications. Previous approaches to rectify these irregular boundaries either sacrifice content fidelity or introduce false information.

Deep learning-based solutions have shown promise but suffer from cumulative error issues and increased complexity. The present paper addressed these shortcomings by proposing a novel image rectangling network based on a reparameterized transformer, assisted learning, and parallel twisted optimal design. Unlike previous methods, this approach preserved original content while maintaining straight-line boundaries, improving both content fidelity and boundary regularity.

Additionally, the proposed method achieved state-of-the-art performance with fewer parameters and faster processing times. Existing techniques in both image stitching and rectangling have limitations in either preserving content fidelity or ensuring regular boundaries. While some fisheye rectangling methods offer solutions, they are tailored for a different context. This paper filled the gap by introducing a lightweight, content-aware rectification network that optimized both content and boundary without introducing additional false information.

Methodology

The authors discussed the proposed approach for image rectangling, which aimed to transform irregularly bounded stitched images into rectangular images with regular boundaries while preserving content fidelity. Traditional methods typically involve a two-stage twisting process, while deep learning-based approaches utilize cascaded networks for multiple twisting processes.

In contrast, the proposed method incorporated a reparameterized transformer structure to design a lightweight image rectangling network, requiring only one twisting process. The network structure consisted of a feature encoding block and a mesh momentum prediction block. The former performed shallow feature transformations to obtain a robust representation of input features, while the latter predicted mesh control point momentum to achieve rectangling.

Additionally, a content reconstruction-assisted network was designed to guide the reparameterized rectangling network for better content fidelity representation. The loss function combined multiple components to optimize the network. Grid loss was introduced to prevent excessive mesh deformation, while appearance loss minimized differences between predicted and target images. Perceptual loss reduced feature differences in high-level semantic perception, and structural similarity loss measured structural differences between predicted and target images.

Overall, the proposed method achieved state-of-the-art performance in rectangling stitched images by combining reparameterization, assisted learning, and parallel twisted optimal design. By addressing the limitations of existing methods, such as content distortion and boundary irregularities, the proposed approach offered a more efficient and effective solution for image rectangling tasks across various application scenarios.

Experiments

The experiments conducted by the researchers aimed to validate the effectiveness of the proposed image rectangling method through both quantitative and qualitative analyses. Implemented using PyTorch on an NVIDIA RTX 2080Ti graphic processing unit (GPU), the method was evaluated on the DIR-D dataset, consisting of training and test sets with irregularly bounded input images and corresponding target images with rectangular boundaries.

For quantitative evaluation, metrics such as structural similarity (SSIM), peak signal-to-noise ratio (PSNR), and natural image quality (NIQE) were employed. Results showed that the proposed method outperformed existing rectangling methods in terms of both referential and non-referential evaluation metrics, achieving state-of-the-art performance with minimal computational resources. The qualitative comparison further demonstrated the superiority of the proposed method in terms of content fidelity and boundary information retention.

Compared to existing methods, the proposed approach exhibited better preservation of image content and boundaries, particularly in scenes with non-linear structures. Ablation experiments were conducted to analyze the effectiveness of different components of the proposed method. Results showed that the inclusion of a feature encoding module and a content-assisted reconstruction network significantly improved the performance of the rectangling model.

Additionally, using the thin-plate spline transformation strategy in parallel optimization demonstrated its effectiveness in reducing computational time while maintaining performance. Overall, the experiments validated the efficacy of the proposed image rectangling method, highlighting its ability to achieve superior rectangling results with fewer computational resources compared to existing approaches.

Conclusion

In conclusion, the proposed method for rectangling stitched images represented a significant advancement in image processing. By leveraging a reparameterized transformer structure, assisted learning network, and parallel twisted optimal design, the approach effectively addressed issues of irregular boundaries and content distortion.

Through comprehensive experiments, the method demonstrated superior performance in terms of content fidelity, boundary regularity, and computational efficiency. This research paved the way for more effective and practical solutions in image rectangling, with potential applications across various fields requiring panoramic views with regular boundaries and preserved content fidelity.
