AI Shields Power Grid From Cyber And Physical Threats With Low-Cost Devices

Researchers at Sandia National Laboratories have developed brain-inspired AI algorithms that simultaneously detect physical problems and cyberattacks within the grid. And this neural-network AI can run on inexpensive single-board computers or existing smart grid devices.

"As more disturbances occur, whether from extreme weather or from cyberattacks, the most important thing is that operators maintain the function and reliability of the grid," said Shamina Hossain-McKenzie, a cybersecurity expert and leader of the project. "Our technology will allow the operators to detect any issues faster so that they can mitigate them faster with AI."

The importance of cyber-physical protection

As the nation adds more smart controls and devices to the grid, it becomes more flexible and autonomous, but also more vulnerable to cyberattacks and cyber-physical attacks. Cyber-physical attacks use communications networks or other cyber systems to disrupt or control a physical system such as the electric grid.

Potentially vulnerable equipment includes smart inverters that turn the direct current produced by solar panels and wind turbines into the alternating current used by the grid, and network switches that provide secure communication for grid operators, said Adrian Chavez, a cybersecurity expert involved in the project.

Because the neural network can run on single-board computers or existing smart grid devices, it can protect both older equipment and the latest equipment that lacks only cyber-physical coordination, Hossain-McKenzie said.

"To make the technology more accessible and feasible to deploy, we wanted to make sure our solution was scalable, portable and cost-efficient," Chavez said.

The package of code works at the local, enclave, and global levels. At the local level, the code monitors for abnormalities at the specific device where it is installed. At the enclave level, devices in the same network share data and alerts to provide the operator with better information on whether the issue is localized or happening in multiple places, Hossain-McKenzie said. At the global level, only results and alerts are shared between systems owned by different operators. That way, operators can receive early alerts of cyberattacks or physical issues their neighbors are experiencing, while protecting proprietary information.

The Sandia team collaborated with experts at Texas A&M University to create secure communication methods, particularly between grids owned by different companies, Hossain-McKenzie said.

Developing the neural network

The biggest challenge in detecting cyber-physical attacks is combining the constant stream of physical data with intermittent packets of cyber data, said Logan Blakely, a computer science expert who led development of the AI components.

Physical data, such as the frequency, voltage, and current of the grid, is reported 60 times a second, while cyber data, such as other traffic on the network, is more sporadic, Blakely said. The team utilized data fusion to extract the key signals from the two distinct types of data. The collaborators from Texas A&M University played a key role in this effort, he added.

Then, the team used an autoencoder neural network, which classifies the combined data to determine whether it fits the pattern of normal behavior or if there are abnormalities in the cyber data, physical data, or both, Hossain-McKenzie said.

For example, an increase in network traffic could indicate a denial-of-service attack, while a false-data-injection attack could include atypical physical and cyber data, Chavez said.

Unlike many other types of AI, autoencoder neural networks do not need to be trained on data labeled with every kind of issue that may arise, Blakely said. Instead, the network only needs copious amounts of data from routine operations for training.

The use of an autoencoder neural network makes the package nearly plug-and-play, Hossain-McKenzie added.

Putting the code to the test

Once the team constructed the autoencoder neural network, they put it to the test in three different ways.

First, they tested the autoencoder in an emulation environment, which includes computer models of the communication-and-control system used to monitor the grid, as well as a physics-based model of the grid itself, Hossain-McKenzie said. The team utilized this environment to model various cyberattacks and physical disruptions, and to provide normal operational data for the AI to train on. The collaborators from Texas A&M University assisted with the emulation testing.

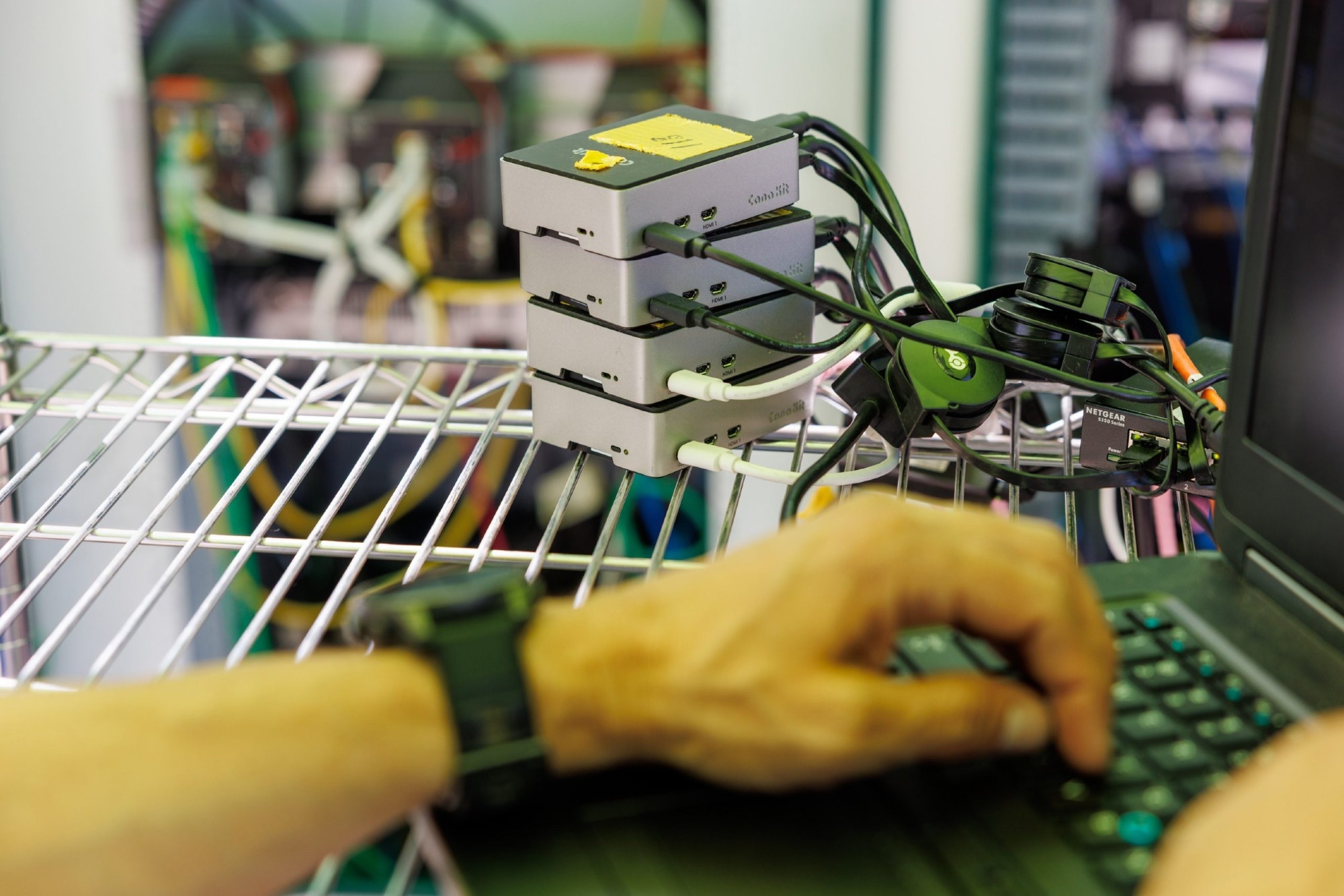

Then, the team incorporated the autoencoder into single-board computer prototypes, which were tested in a hardware-in-the-loop environment, Hossain-McKenzie said. In hardware-in-the-loop testing, researchers connect a real piece of hardware to software that simulates various attack scenarios or disruptions.

When the autoencoder is on a single-board computer, it can read the data and implement the algorithms faster than a virtual implementation of the autoencoder can in an emulation environment, Chavez said. Generally, hardware implementations are hundreds or thousands of times faster than software implementations, he added.

The team is collaborating with Sierra Nevada Corporation to evaluate how Sandia's autoencoder AI performs on the company's existing cybersecurity device, Binary Armor, Hossain-McKenzie said.

"This will give a really great proof-of-concept on how the technology can be flexibly implemented on an existing grid security ecosystem," she said.

The team is testing both formats—single-board prototypes interfaced with the grid and the AI package on existing devices—in the real world at the Public Service Company of New Mexico's Prosperity solar farm as part of a Cooperative Research and Development Agreement, Hossain-McKenzie said. These tests began last summer, Chavez said.

"There's nothing like going to an actual field site," Chavez said. "Having the ability to see realistic traffic is a really great way to get a ground-truth of how this technology performs in the real world."

The team also collaborated with PNM early in the project to determine what AI design might be most beneficial for grid operators. It was during conversations with PNM staff that the Sandia team identified the need to rapidly and automatically connect cyber-defenders with system operators.

Future directions

This project built off and expanded upon a previous R&D 100 Award-winning project called the Proactive Intrusion Detection and Mitigation System, which focused on detecting and responding to cyber intrusions in smart inverters on solar panels, Hossain-McKenzie said. The team is also expanding upon the autoencoder AI in similar projects, she added.

The team has filed a patent on the autoencoder AI and is seeking corporate partners to deploy and refine the technology in the real world, Hossain-McKenzie said.

With a bit more work, the autoencoder could be used to protect other critical infrastructure systems such as water and natural gas distribution systems, factories, and even data centers, Chavez said.

"Whether or not our technology succeeds in the market, every utility around the world is going to need a solution to this problem," Blakely said. "This is a fascinating area to do research in because one way or another, everyone is going to have to solve the problem of cyber-physical data fusion."

The project is funded by Sandia's Laboratory Directed Research and Development program.
